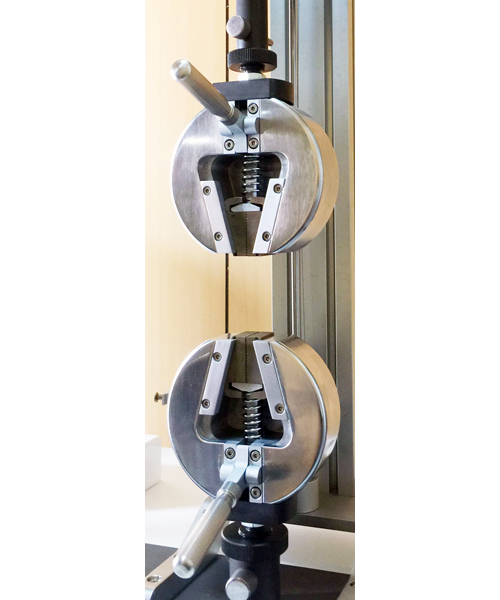

PT-009A-2T
手扳式鍥型夾具
產品說明
夾持力2,000 kgf
夾面寬 : 30mm
夾面高 : 34mm
可夾試片厚度 : 0~12mm
接頭直徑: 20mm
插銷孔直徑 : 8.2mm , 中心孔距邊端離 15mm
夾具尺寸約 : 寬x高x厚 128x150x43mm
重量約: 3990g
Holding force 2,000 kgf
Clamping surface width: 30mm
Clamping surface height: 34mm
Thickness of test piece that can be clamped: 0~12mm
Connector diameter: 20mm
Pin hole diameter: 8.2mm, the center hole is 15mm away from the edge
Approximate fixture size: width x height x thickness 128x150x43mm
Approximate weight: 3990g
夾面寬 : 30mm
夾面高 : 34mm
可夾試片厚度 : 0~12mm
接頭直徑: 20mm
插銷孔直徑 : 8.2mm , 中心孔距邊端離 15mm
夾具尺寸約 : 寬x高x厚 128x150x43mm
重量約: 3990g
Holding force 2,000 kgf
Clamping surface width: 30mm
Clamping surface height: 34mm
Thickness of test piece that can be clamped: 0~12mm
Connector diameter: 20mm
Pin hole diameter: 8.2mm, the center hole is 15mm away from the edge
Approximate fixture size: width x height x thickness 128x150x43mm
Approximate weight: 3990g
